Description

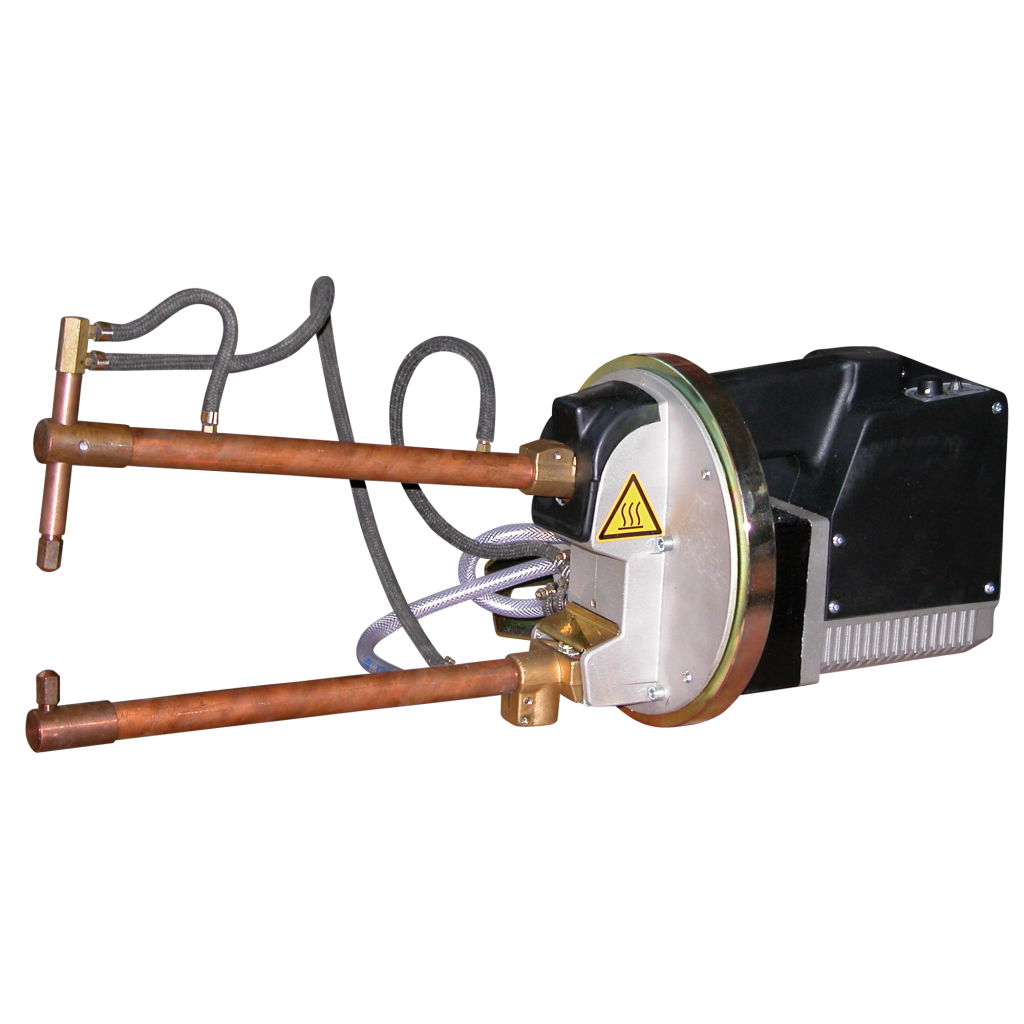

Fully water cooled portable spot gun
• For high operating rate works in car body
repair and light production works in industry
• Synchronous built-in electronic timer with
SCR from 2 to 65 cycles
• Compensation circuit starts the timer only when there
is a proper passage of current which enables to perform
on oxidised sheets, on surfaces with paint residues or
on black sheets
• Current control with phase shift adjustment to carry
out difficult welds, on very thin thickness, on rods with
reduced diameter, on stainless steel sheet and similar
• Balanced construction for easy operation
• Thread base for fixing on a bench
• A built-in differential pressure switch operates
the timer when the electrode force is correct
• Additional arm couplings to provide larger
opening between arms
• All transformer are coated with F class insulation
material. Insulation test performed at 4000V
